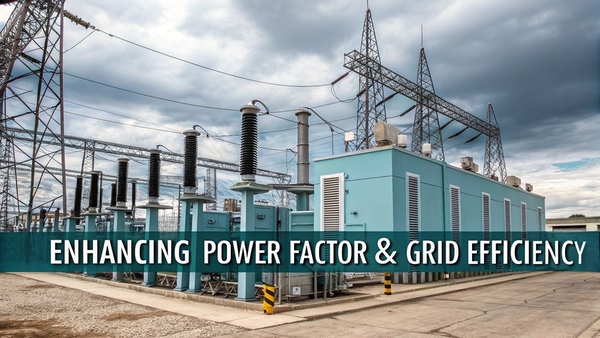

What is a MV / HV capacitor bank and why is it used?

Many power systems waste energy due to low power factor or instability. That creates losses, higher bills, and equipment damage.

MV/HV capacitor banks are used to improve power factor, voltage stability, and system efficiency in power generation, transmission, and consumption systems.

If you’re dealing with rising energy costs or system failures, understanding capacitor banks is a step toward solving it. Let’s break it down.

Capacitor banks application: power generation, transmission distribution networks, power consumption

Low power factor¹ causes overheating, voltage drops, and higher operating costs in every part of the grid.

Capacitor banks are applied across generation plants, grid substations, and industrial loads to stabilize voltage and compensate reactive power².

From generation to consumption, here’s where capacitor banks³ play a role:

Power Generation

• Wind and solar power plants use capacitor banks to stabilize voltage output.
• Conventional plants (thermal/hydro) use them to support generator performance.

Transmission and Distribution

• Substations use MV and HV banks for voltage control and reactive power balancing.
• They help reduce transmission losses and avoid penalties from grid operators.

Power Consumption

• Heavy industries (aluminum, cement, steel, chemical) rely on them to improve power factor and reduce surcharges.
• Also used in mining and smelting plants to support fluctuating loads.

Without capacitor banks, energy systems become unstable and expensive to operate. Their role is no longer optional—it’s essential.

Types of capacitors banks in Medium Voltage and High Voltage reactive power equipment?

Too many buyers focus on specs but ignore form. Structure impacts safety, cost, and reliability.

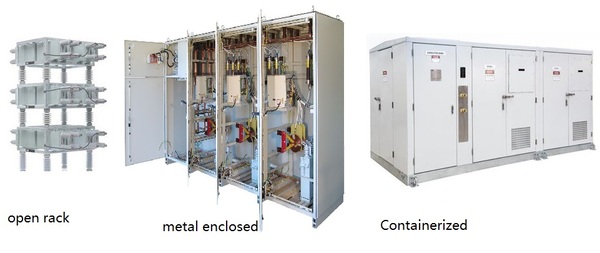

MV/HV capacitor banks⁴ are usually built in three formats: open-rack, metal-enclosed, and containerized. Each suits different site needs.

Open Rack

Installed on steel frames, mostly used outdoors.

• Pros: low cost, easy access, flexible layout
• Cons: exposed to weather, needs fencing
• Best for: substations, solar/wind plants, large yards

Metal-Enclosed⁵

All parts sealed in a cabinet. Compact and safer.

• Pros: safer, cleaner, less space
• Cons: higher cost, harder to customize
• Best for: factories, rooftops, urban grids

Containerized⁶

All-in-one unit inside a container. Plug and play.

• Pros: quick setup, mobile, weatherproof
• Cons: heavy, needs crane or forklift
• Best for: remote sites, harsh climates, fast deployment

Quick Comparison

At Shangdian, we build all three. We select the right one based on your space, budget, and protection needs. Structure isn’t just packaging—it’s performance.

Uses and Benefits of Capacitor Banks?

Many plants suffer from hidden energy losses. It’s not the machines—it’s the poor power quality.

Capacitor banks offer power factor correction, voltage support, energy savings, and reduce wear on electrical assets.

Main benefits include:

• Lower electricity bills by reducing reactive power charges
• Improved voltage stability and motor performance
• Reduced losses in cables, transformers, and distribution systems
• Smaller carbon footprint and longer equipment lifespan

For any industrial plant or utility, these banks are the backbone of reliable power delivery.

What is the difference between a capacitor bank and a harmonic filter?

They look similar. They both use capacitors. But using the wrong one could damage your system.

Capacitor banks correct power factor. Harmonic filters clean harmonic distortion⁷. One saves energy, the other protects sensitive loads.

Sometimes, you need both. If your plant uses lots of drives or has high THD (Total Harmonic Distortion), then a harmonic filter is required. If not, a basic capacitor bank will do.

How do I choose a capacitor bank capacity?

Pick the wrong size—it underperforms or causes overcompensation. Either way, it’s waste.

The capacity of a capacitor bank should match the site’s reactive power demand, based on load type, operation time, and harmonic levels.

Steps to choose:

1. Measure your current power factor (PF)
   Use utility bills or power meters.

2. Define your target PF
   Most aim for 0.95–0.99 to avoid surcharges.

3. Calculate kvar demand
   Use the formula:
   Q = P × (tanφ1 – tanφ2)
   Where Q is required kvar, P is active power in kW, φ1/φ2 are the angles of existing and desired PF.

4. Check harmonic conditions
   If THD > 5%, consider detuned or filtered banks.

5. Choose configuration
   Based on voltage level, switching method (fixed, automatic, thyristor), and layout.

Still unsure? At Shangdian, we size banks based on actual plant data—not assumptions.

What Sets Shangdian Apart From Other Capacitor Bank Suppliers?

Many suppliers offer low prices. Few offer long-term performance.

Shangdian delivers bankable quality, deep customization, and proven reliability for critical MV/HV projects.

Why clients like ABB, Siemens Energy, and CRRC choose us:

• Reliable Quality
  Automated production lines, ISO 9001/14001/OHSAS 18001 certified

  More than 5000 projects completed, across 20+ countries

• Cost-Effective
  Competitive pricing through scale and vertical integration

• Engineering Support
  From joint design to technical lifecycle service

• Fast Turnaround
  Automated lines cut lead time, backed by strong logistics

Whether you need a 300 kvar pole-mounted unit or a 20 Mvar containerized station, we build it like it’s our own.

Conclusion

Capacitor banks aren’t just components—they’re essential tools to keep your energy clean, stable, and cost-efficient.
